SWAGELOK Spring Return VALVE Handles
Spring Return Handles for Swagelok Valves
Spring return handles for Swagelok instrumentation or 3 piece ball valves protect personal life and the environment from unnecessary sample waste.

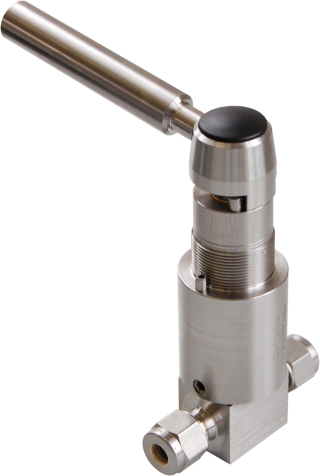

The Mechatest design Swagelok spring return handles also known as “deadmans” handles are designed for Swagelok ball valves, the
function in this case is always that the valve is (spring) return to closed position when the handle will be released.
For this purpose Mechatest designed two types spring return handles for Swagelok valves 43-serie, 83-serie, 62-serie and 63-serie, one with 90° rotation for 2-way ball-valves and one with 180° rotation for 3-way ball-valves.
- Failsafe operation
- For Swagelok 2-way and 3-way ball-valves series 43, 62, 63 and 83
- The 2-way function spring return handles can be mounted as spring-to-close or spring-to-open.
- Panel mount facility.
- Zero maintenance.
- Completely Stainless Steel.
It often happens that manual operated instrumentation ball-valves are not turned in the required position after operation. Most times this means that the valve is not closed. It can be very important (for safety reasons) that the ball-valve automatically rotates back. This can be achieved by mounting a spring return adapter on top of a manually operated ball-valve. This is particularly required for sampling valves. Spring return handles protect personnel and environment from unnecessary sample waste. The spring return handles also known as “dead mans” handles, the function in this case is always that the valve is spring)return to closed position when the handle will be released. The Mechatest spring return handle can directly mounted to several types Swagelok, Fitok and Hoke instrumentation ball-valves.
- The spring return handles also known as “deadmans” handles, the function in this case is always that the valve is (spring) return to closed position when the handle will be released.
- Effectively dealing with the effluent and waste from sample taps is a concern to both environmental and safety engineers at petrochemical plants. The Mechatest spring return handle guarantee failsafe operation for small instrumentation ball valves. The spring return handle with ball-valve is the perfect solution for the most common lab sample points.
- ASTM D 4057
- ASTM D1265-05
- NACE MR0175 or MR0103
Spring Return Handles for Swagelok 43-serie Valves
The Mechatest spring return handle can directly mounted to several types Swagelok 43-series
instrumentation ball-valves, available for;
- 43-series Swagelok valves
Swagelok Spring Return for 2-way and 3-way ball-valves.
Spring Return Handles for Swagelok 83-serie Valves
The Mechatest spring return handle can directly mounted to several types Swagelok 83-series
instrumentation ball-valves, available for;
- 83-series Swagelok valves
Swagelok Spring Return for 2-way and 3-way ball-valves.
Spring Return Handles for Swagelok 62-serie Valves
The Mechatest spring return handle can directly mounted to several types Swagelok 62-series
3 piece type ball-valves, available for;
- 62-series Swagelok valves
Swagelok Spring Return on this moment only for 2-way ball-valves.
Spring Return Handles for Swagelok 63-serie Valves
The Mechatest spring return handle can directly mounted to several types Swagelok 63-series
3 piece type ball-valves, available for;
- 63-series Swagelok valves
Swagelok Spring Return on this moment only for 2-way ball-valves.
