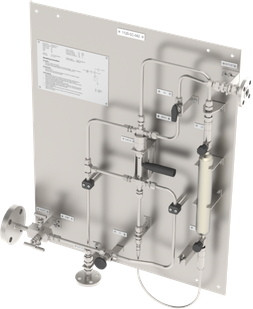

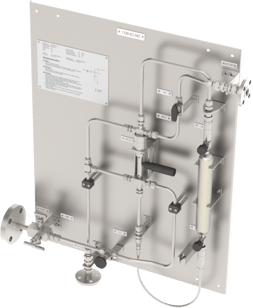

ARAMCO Sample Stations SDSS

Mechatest provides SAUDI ARAMCO Sample Station systems for manual liquid and gas sampling purposes. The Saudi Aramco manual sample stations are specific designed conform the design basics SAES and SAMSS as well the best practice SABP-A-109 for Sampling Point Designs.

For representative gas and liquid sampling we follow the rules of the Aramco sampling point designs, high quality and high standards are required for corrosion resistance services, we design for Aramco sample point stations with materials in Super Duplex SDSS, Inconel 625 or 6MO, most applications require a min PREN number of 42 to secure a corrosion free long lifetime.

This best practice is to provide guidelines for the safe design and installation of manual sampling station system from process stream.

To enhance the personnel safety, sampling accuracy and minimizing data discrepancy that is hindering accurate measurement of water, chemicals, gas and liquid hydrocarbons quality across upstream and downstream facilities.

Scope covers streams that are sampled in Saudi Aramco's onsite and offsite facilities, including but not limited to transportation pipelines and other types of hydrocarbons processing or handling facilities where a manual sampling is required.

Water/Steam/Non Flashing Water

• Sampling of Water at Water injection Well Head
• (Non-Flashing Water Service)
• Non-Hazardous and High Temperature Liquid Samples
• (Steam Flashing or Non-Flashing Water)
• General Samples for Liquid Service

Flashing Crude

• Flashing Crude Sampling at Test Header
• Single Wellhead Wild Crude Sampling
• Centralized Wellhead Wild Crude Sampling

Liquid Hydrocarbons

• Liquid Hydrocarbons
• Hot Liquid Hydrocarbons
• Liquid Sampling – Closed Loop Cylinder (Non-Recirculation Type)
• Liquid Sampling - Closed Loop Cylinder with Cooler (Non-Recirculation Type)
• Liquid Sampling - Closed Loop Cylinder with Cooler (Recirculation Type)

Gas Sampling

• Gas Sampling (Temperature < 140°F) (Non-Recirculation type)
• Gas Sampling (Temperature < 140°F) (Recirculation type)
• Gas Sampling (Temperature > 140°F) (Non-Recirculation type)
• Gas Sampling (Temperature > 140°F) (Recirculation type)

Refinery Products

• Special Sample Connection for Amine Stream With Sample Box Air-Ejector (Non-Recirculation Type)
• High Temperature Two Phase Stream Where Gas Sample is Required (Temperature > 140°F) Non-Recirculation Type
• High Temperature Liquids Samples and High Pour Point (Temperature > 140°F) Non-Recirculation Type
• High Temperature Liquids Samples and High Pour Point (Temperature > 140°F) Recirculation Type
• High Temperature Sour Liquid (Temperature > 115°F) Recirculation Type
• Low Temperature Sour Liquid (Temperature < 115°F) Recirculation Type
• Special Sample Connection For Low Temperature LPG, Sour Gas & Pentane Stream (Temperature < 115°F)
• Special Sample Connection For Catalyst Sampling
• Low Temperature Gas or Flashing Liquids or Hazardous Liquid Sample (Temperature < 140°F)
• High Temperature Gas or Flashing Liquids or Hazardous Liquid Sample (Temperature > 140°F)

Tank Sampling

• Sampling Jar Opening System Fixed Roof Tank
• Sampling Point Closed System Fixed Roof Tank
• Sampling Point Open System Fixed Roof Tank
• Sampling Jar Opening System Floating Roof Tank
• Sampling Point Closed System Floating Roof Tank
• Sampling Point Open System Floating Roof Tank

Mechatest contributes with a lot of projects to a low-carbon future by selling closed loop emission free liquid and gas sampling systems to reduce CO2 emission.

Liquid and Gas Sampling for Saudi Aramco facilities

The big advantage of the Mechatest fix volume sampling system is the possibility to take liquid sample under high process pressure and fill it into a glass sample bottle, the sample is directly take from a tank, container, pipeline, reactors or mixer. Water/Steam/Non Flashing Water; Flashing Crude; Liquid Hydrocarbons; Gas Sampling; Refinery Products; Tank Sampling
We have improved our sampling systems by:

• Creating closed loop systems emission free which provide a safe, controlled environment
• Suitable for high pressure process application
• Adding sample (needle or process) purge options with Nitrogen or other gas
• Fixed volume sampling, which minimizes both waste and costs
• Simplifying designs, making the sampling of liquid and gas more efficient
• Proper discharge of excess liquid or gas prevents unwanted pressure build-up in the system

These modern solutions simply regard the sampling systems themselves. Our worldwide reputation rests on the combination of excellent systems, and professional services by our team of specialists.

Enjoy the full benefits of an experienced team of passionate professionals

Mechatest employees possess decades of experience and knowledge. All of which is at your disposal when your sampling system needs adaptations, maintenance or repairs. Our staff has high-tech equipment at their disposal, thus increasing their efficiency even more. We are even capable of designing and manufacturing in accordance with foreign codes and standards.

Start improving by sampling process today

Why wait any longer? Improvement starts today if you pick up the phone and call us. Our staff provides you with all the information you need to make an informed decision and choose the best sampling systems for liquid or liquefied gas.
